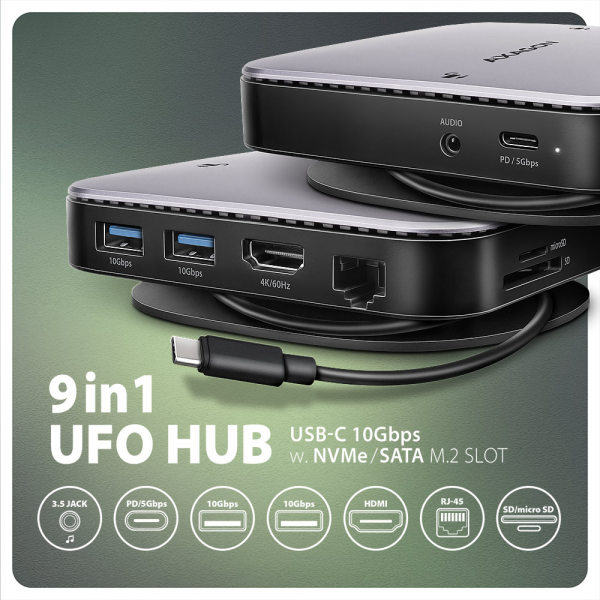

USB хаб AXAGON HMC-UFO USB-C 10Gbps UFO 9in1 hub

Input (connection to a computer or mobile device):

• USB 10Gbps (USB 3.2 Gen 2), USB-C male connector.

• Compatible with USB 5Gbps, USB4, Thunderbolt 3/4.

Input (power supply):

• USB Power Delivery 3.0 - 100W port, USB-C female connector.

• Powering the mobile device from the mains adapter via the USB-C hub.

• PD powering must be supported by both the mobile device and the mains charger.

USB outputs:

• 2x USB 10Gbps port, USB-A female connector.

• 1x USB 5Gbps port for data transfer or Power Delivery charging, USB-C female connector.

• Charging of mobile devices (including iPad) with a current of up to 1.5A/5V from the hub's USB-A and USB-C ports.

Video outputs:

• 1x HDMI port, HDMI A female connector.

Maximum supported resolution:

• 1 monitor - up to 4K/60Hz Ultra HD, 2K/144Hz Quad HD, 1080p/240Hz Full HD

Video features:

• For Apple devices running macOS, the maximum refresh rate is usually limited to 60Hz.

• To achieve maximum resolution and frequency values on video outputs, the dock must be plugged into a USB-C port supporting DisplayPort Alternate Mode (DP Alt Mode) version min. 1.4 or a USB-C port supporting min. Thunderbolt 4. A suitable updated OS and up-to-date graphics drivers are also required.

• HDR support (High dynamic range, 10 bit support) - realistic reproduction of light and dark details.

• HPD (Hot-Plug-Detect) support.

• TMDS (Transition Minimized Differential Signalling) support.

• Full support for HDCP 1.4 and 2.2 (High-bandwidth Digital Content Protection).

• Up to 8-channel LPCM audio, compressed audio (AC-3, DTS) and HBR audio format support.

• Supports sample rates up to 192 kHz and up to 24-bit audio - depends on the source and target device, i.e. laptop/phone and TV/monitor/AV receiver.

The card reader - two slots:

• Slot Micro SD: microSD / microSDHC / microSDXC / TransFlash.

• Slot SD: SecureDigital / SDHC / SDXC, MultiMedia Card, MMC 4.0, MMC Dual Voltage, MMC mobile, RS-MMC, with adapter - miniSD, microSD / microSDHC / microSDXC, MMC Micro.

• 2 LUN - the reader is indicated as two disk drives. The possibility of copying from card to card.

RJ-45 output:

• Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection.

• Supported transmission rates for the Ethernet interface 10/100/1000 Mb/s.

• Supported IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specifications.

• 10/100/1000 Mb/s auto-detection.

Audio output / input:

• 1x 3.5 mm 4pin jack for headset, headphones or active speakers,

• 2-channel analog stereo output 384 kHz @ 24 bit for playback,

• 192 kHz @ 24 bit analog microphone input for recording.

M.2 SSD slot:

• NVMe & SATA M.2 SSD disks.

• Designed for M key or B+M key format cards.

• NGFF 75-pin M-key slot for M.2 drives.

• Support of M.2 drives with a size of 2242, 2260, 2280 mm.

• Support of both one-sided and double-sided M.2 SSDs.

• Compliant with PCI Express Base Specification Revision 3.1a specification.

• Compliant with NVM Express 1.3 specification.

• Compliant with Serial ATA 3.2 specification (SATA/600), bit rates of up to 6 Gb/s (600 MB/s).

• Compliant with USB Mass Storage Class specification.

• Supports UASP (USB Attached SCSI) for faster data transmission in Windows 8 and later.

• Support of TRIM functionality to limit gradual degradation of the SSD performance over time.

• Support for booting from an SSD in the hub's M.2 slot.

Other features:

• Possibility to connect your device while running thanks to the Hot Plug support.

• Full Plug and Play support.

• Standby mode support.

• Power supply via USB bus - USB bus power.

• Power supply via PD charger (not included).

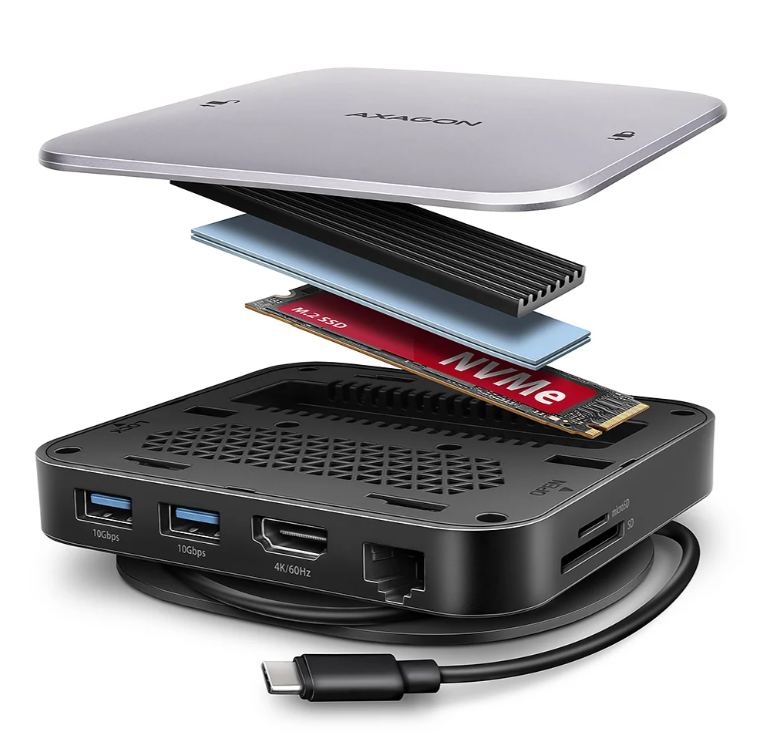

• The aluminum cover of the M.2 slot helps to better dissipate heat. Higher surface hub temperature is not a problem - the heat generated by the hub and M.2 disk operation is better dissipated and transferred to the surroundings.

• The blue LED indicates with constant light the hub connection to the computer.

• High quality shielded cable ensures fast communication speed and minimal unwanted interference.

• Dimensions 32 x 110 x 100 mm (H x W x D).

• Weight 213 g (incl. cable).

• USB-C cable 65 cm long for connecting the hub to a laptop.

Supported operating systems:

• Microsoft Windows 10 / 11, macOS, iPadOS, iOS, Linux, Chrome OS and Android.

• Compatibility depends on the operating system and device manufacturer support.

• DisplayPort Alternate Mode (DP Alt Mode) is only supported in updated OS and also depends on support from device (notebook, tablet, phone).

• Graphics card drivers may also affect the correct operation of the product. We recommend downloading the latest version of drivers.

Package contains:

• USB-C hub with fixed 65 cm long cable,

• passive heatsink,

• 2 pcs thermal conductive pads,

• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / UA / BG / CN / TR / ARA,

• packed in a cardboard box.
